Milling rates:

Minimum order from UAH 800
A percentage of the cost is added to the indicated prices in the following cases:


  •  Cutting price with cutting line up to 200 m.p. +20%
  • Double-sided cutting (with material flip)  +50%
  • Drilling  from 600 UAH/hour of machine operation
Optimization of the layout on the sheet, adaptation of drawings - from 100 UAH.
Rendering of the model - by agreement.

Technical parameters

  • Working field 1250*2500 mm
  • Products with an area greater than the working field are accepted for work by agreement.
  • Depth of cut up to 60 mm.
  • Portal height up to 150 mm.
Full price list available upon request.

Prices: CNC milling and laser cutting


Services of curvilinear cutting, milling and engraving on a CNC milling machine of sheet materials: plywood, MDF, wood, solid wood, acrylic, plexiglass (plastics), composite, acrylic stone, etc. >Prices are indicated in hryvnias, when ordering a cutting line&nbsp ; from 200  running meters (wholesale)

Prices for  CNC milling cutting, wholesale from 200 m.p.:

Thickness
up to 3 mm
3mm
4mm
5mm
6mm
8 mm
9mm
10mm
12mm
15mm
16mm
18mm
19 mm
20 mm
21mm
24mm
25 mm
27 mm
30mm
>30mm
Chamfer, one side*
PVC, PET, PTFE
-
-
-
11
12
14
16
18
22
28



36


45


ind. miscalculation
9
Acrylic,
Plexiglas
-
-
-
11
14
18

22
30
39
41
42

44


53


ind. miscalculation
 9
Textolite, Fiberglass,
Caprolon
10
10
15
15
18
20
22
24
30
34
37
40
42
44





ind. miscalculation
9
Plywood


8

9

13

16
20

22

24
26
28
30
34
40
ind. miscalculation
9
 MDF, Wood


9

9

13
14
16
18
20
22
23
24
26
28
30
33
40
ind. miscalculation
9

* Shaped chamfering (for example, rounding the corner of the end)

Prices for milling cutting are indicated in UAH when ordering a cutting line  from 200  running meters (wholesale)

The minimum order is from UAH 800.
A percentage of the cost is added to the prices indicated in the table in such cases:

  • Cutting price with cutting line up to 200 r.m. +20%
  • Double-sided cutting (with material flip)  +50%
  • Drilling  from 600 UAH/hour of machine operation
N layout optimizationon the sheet, adaptation of drawings - from 100 UAH.
Drawing of the model - by agreement.
Flexible pricing for regular and system customers.



Laser cutting prices:

Thickness
1mm
2mm
3mm
4mm
5mm
6 mm
8mm
Fabric/Felt
2.5
3
4
-
-
-
-
Acrylic
3
4
5
7
8
9
12
Paper , cardboard
2
4
-
-
-
-

Plywood, Wood, Veneer
3
6
6
7
8
9
17
 MDF
-
-
6
8
9
11
16


Price in UAH per linear meter, minimum order from 500 UAH.
Laser cutting is performed on plywood, wood, MDF,Veneer, acrylic (plastic), felt, cordura, neopren, etc.


Prices for 3D milling and laser engraving:

The cost of services is calculated specifically for the task, send layouts to the contact details, write and call, we will be happy to help. For a very preliminary assessment:

Piece lettering (laser)
Laser engraving on non-metals (wholesale price from 2 sq.m.).
3D milling on non-metals (depending on the model  and material)
1 UAH/cm.sq.
 0,35 - 0,5 UAH./cm.sq.
 500 UAH/hour of machine operation
The minimum order for laser engraving is 500 UAH, for CNC milling - 800 UAH.
Drawings for rendering are required in vector form or 3d models,  For more details on options, see Prices.

We do not work with metals (!)





INSTRUCTION FOR PREPARING A FILE FOR CNC CUTTING

  • Vector files in CDR, EPS, PDF, AI, DWG, DXF formats are suitable for work. it is preferable to keep in earlier versions.   When exporting  files can be distorted from different editors, it is important to check the final file.

  • The preferred scale is 1:1 (life-size image). In the  order of exclusion  the scale is specified in the cover letter.
  • It is obligatory to connect all vector objects,  all curves must be closed, without breaks.

  • Not allowed  - formation of images due to the thickness of the curves (outline), all lines must be converted into objects.   Width of curves 0 or "Hair line". All layout objects without a fill.

  • Not allowed - self-cutting of vector lines and duplication of objects, lines or points.

  • The file should not contain "third-party objects" - colorless lines or accompanying texts ("graphic garbage").

  • All fonts or symbols must be converted to curves.

  • For cutting with a router, it is necessary to ensure the possibility of technological passage of the cutter: the minimum distance between the contours for the passage of the cutter must be 2 mm or more, depending on the layout and thickness of the material.

  • Please check layouts carefully before submitting, errors in original layouts are the customer's responsibility. Cutting distortion can be up to 0.5 mm, depending on the complexity of the layout and the thickness of the material.

  • JPEG, PNG, GIF, TIFF and other raster formats are not suitable for work, raster images require separate drawing into vector (raster vectorization). Rastera picture can accompany orders for visualization and control of the correctness of the task.

Depending on the type of material and sheet thickness, we may offer additional adjustments to the layout, as   plywood, MDF and acrylic behave differently when milled.

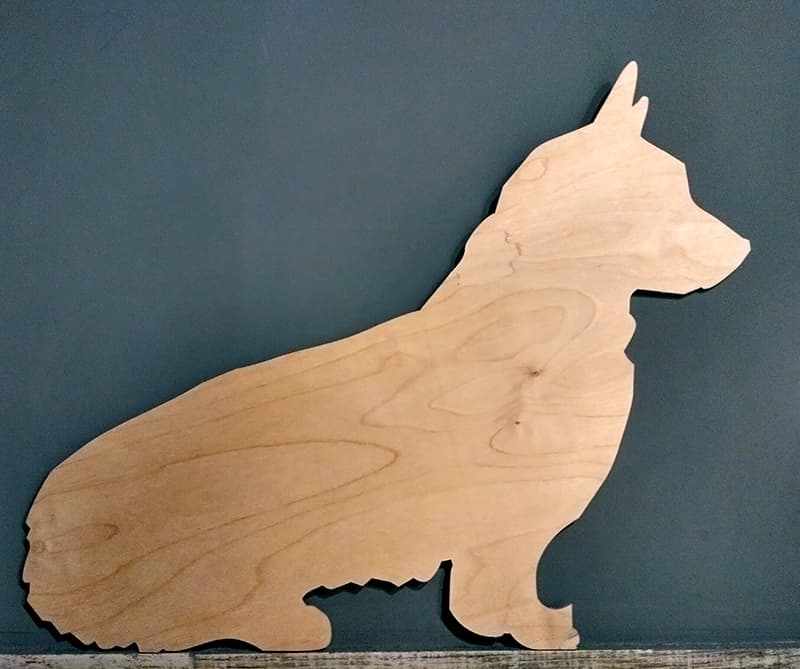

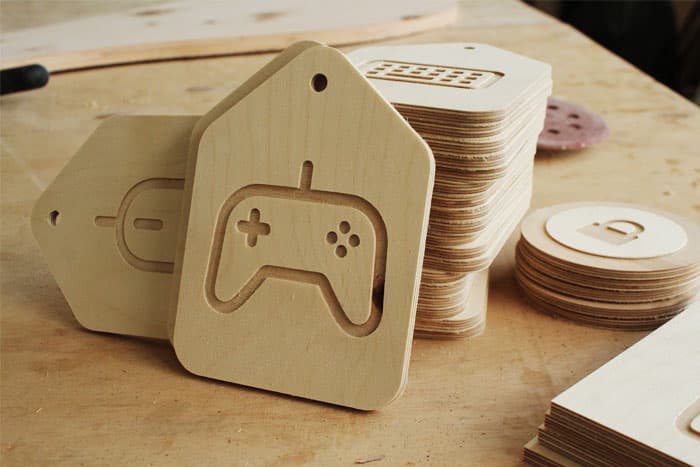

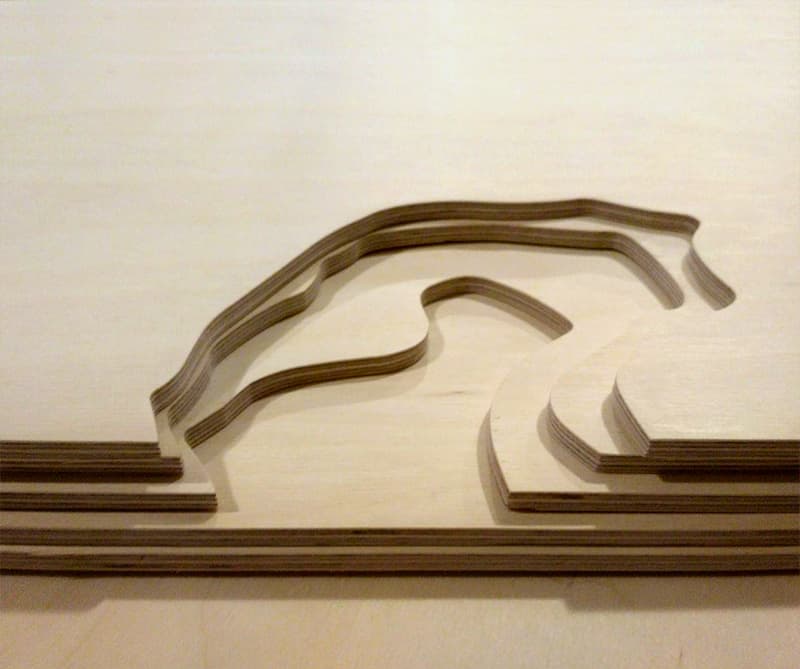

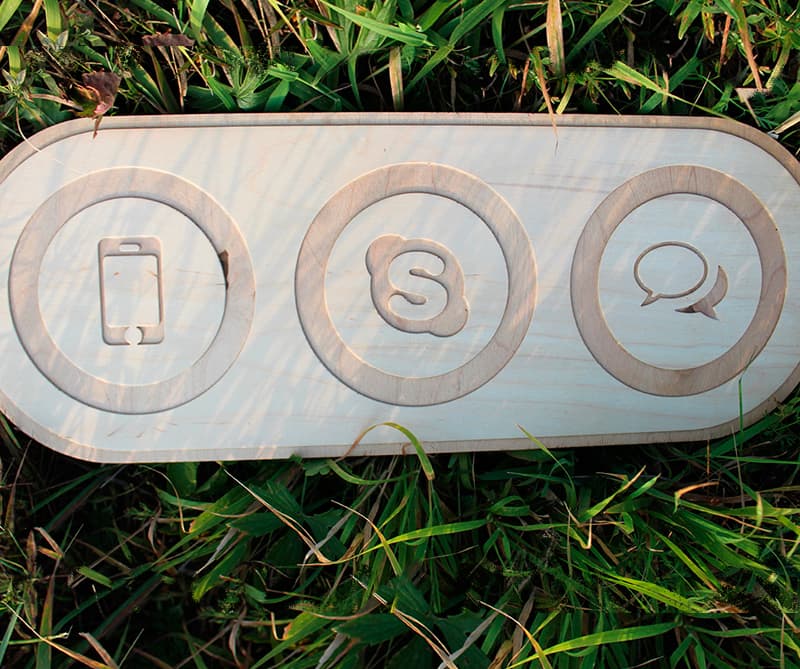

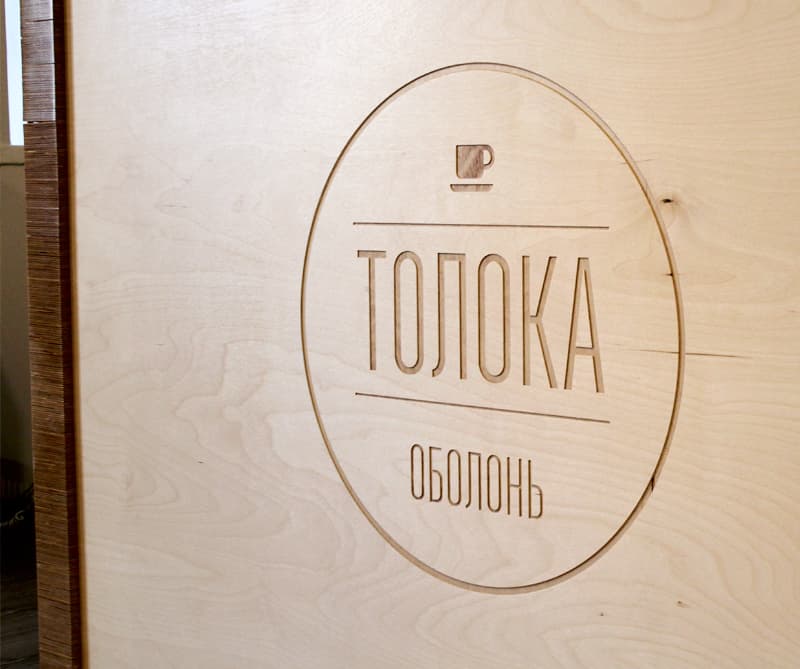

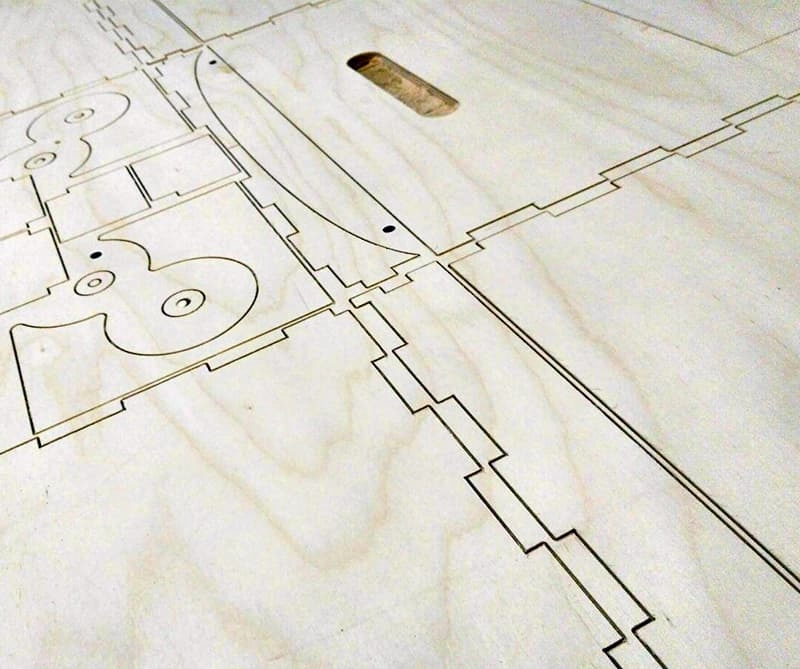

 CNC cutting plywood:

View the embedded image gallery online at:
https://baumwerk.com.ua/en/tseny#sigProIdb955c8e6e0

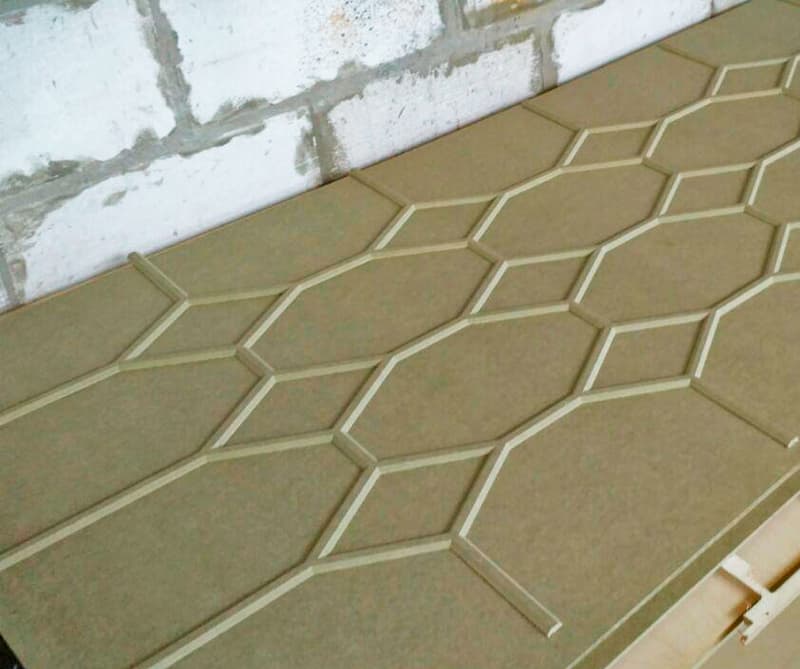

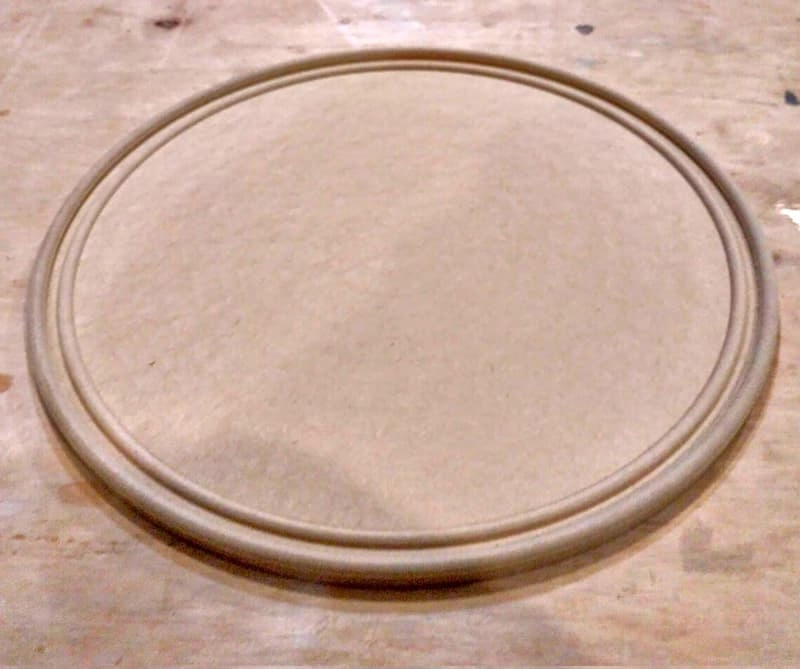

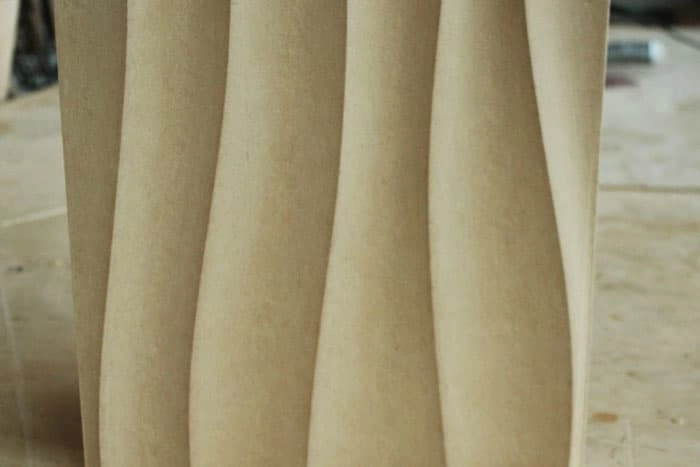

Milling MDF, wood, solid:

View the embedded image gallery online at:
https://baumwerk.com.ua/en/tseny#sigProId8ea769228a

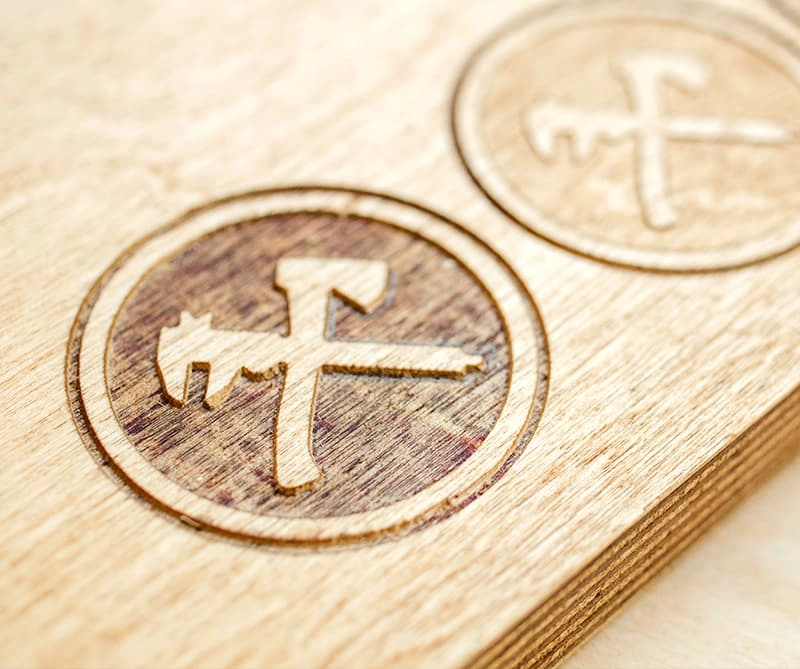

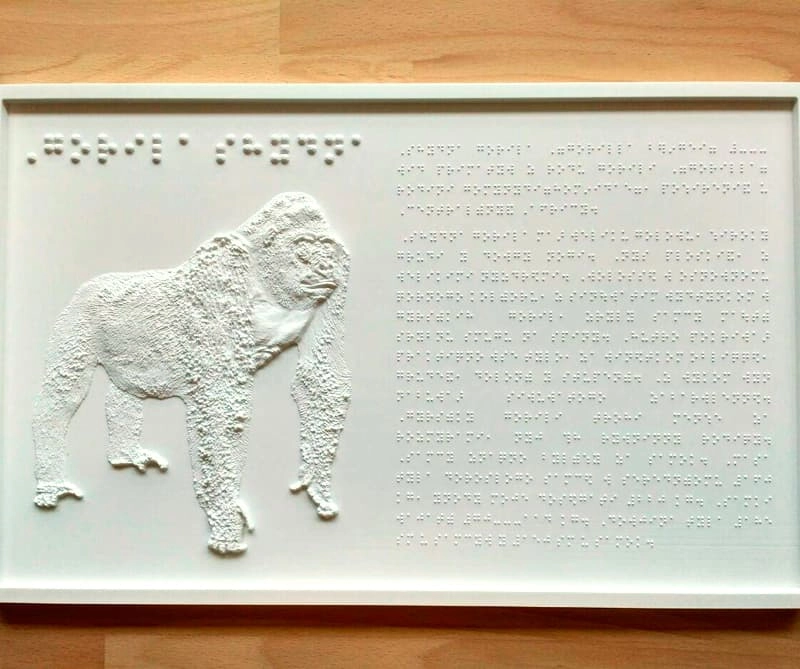

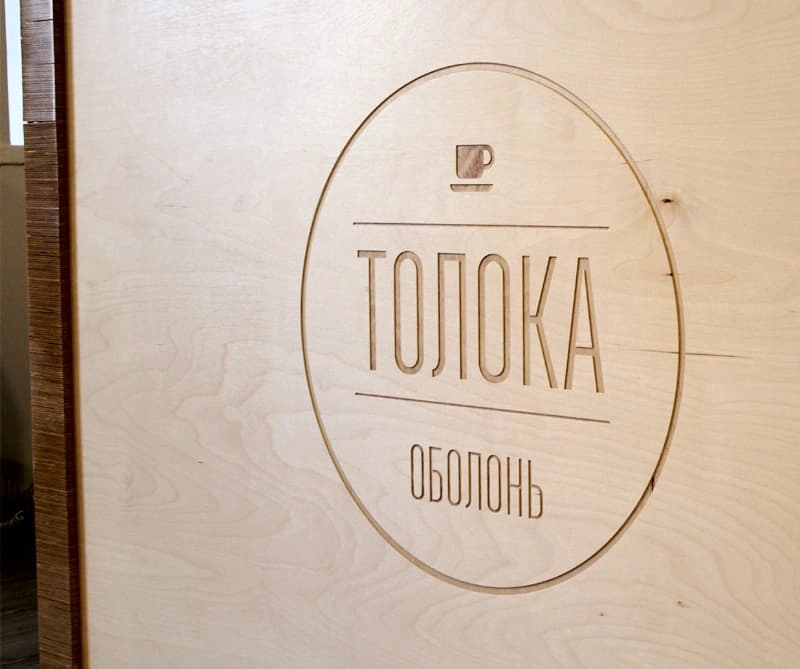

Milling and engraving of acrylic, acrylic stone, plastics, plywood, textolite, fluoroplast, etc.:

View the embedded image gallery online at:
https://baumwerk.com.ua/en/tseny#sigProIdf740bb14f5
